In this article, we’ll be working with tabs in ngx-bootstrap library.

If you’re curios about ngx-bootstrap layouts, you can check out this post, then this one.

Quickly prototype Bootstrap 4 layouts with Angular 8

We’ll start by looking at a completed example in Stackblitz.

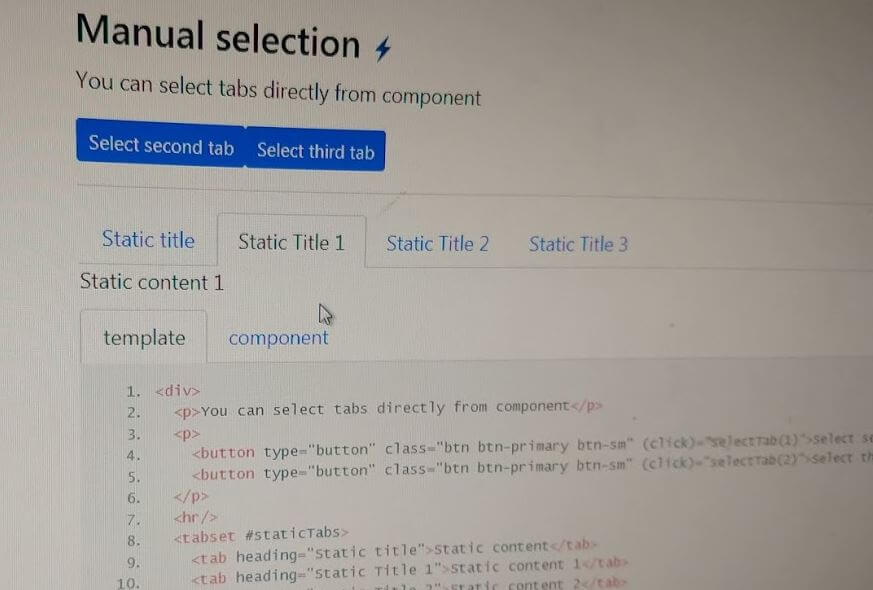

What we’ll be building

Here’s the finished app on Stackblitz.

Next, let’s take care of a few prerequisites.

Step 1: Install ngx-bootstrap and Bootstrap 4 CSS from a CDN

To begin, we first need to make sure that ngx-bootstrap is added, as explained here.

After that, we’ll add an external Bootstrap css file via CDN, as explained here.

Now we’re ready to add our tabs.

Step 2: Add ngx-bootstrap tabs

Let’s copy the ngx-bootstrap tabs example from this link.

Next, let’s make a new folder, call it tabs, and add a new file, called tabs.component.html, where we’ll simply paste in the code copied from the above-referenced site:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
<div>
  <p>You can select tabs directly from component</p>
  <p>
    <button type="button" class="btn btn-primary btn-sm" (click)="selectTab(1)">Select second tab</button>
    <button type="button" class="btn btn-primary btn-sm" (click)="selectTab(2)">Select third tab</button>
  </p>
  <hr/>
  <tabset #staticTabs>
    <tab heading="Static title">Static content</tab>
    <tab heading="Static Title 1">Static content 1</tab>
    <tab heading="Static Title 2">Static content 2</tab>
    <tab heading="Static Title 3">Static content 3</tab>
  </tabset>
</div>

Besides the template, our component also needs a Typescript file, so we can export our component class:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
import { Component, ViewChild } from '@angular/core';
import { TabsetComponent } from 'ngx-bootstrap';

@Component({
  selector: 'demo-tabs-manual-selection',
  templateUrl: './tabs.component.html'
})
export class DemoTabsManualSelectionComponent {
  @ViewChild('staticTabs', { static: false }) staticTabs: TabsetComponent;

  selectTab(tabId: number) {
    this.staticTabs.tabs[tabId].active = true;
  }
}

If you feel like it, you can add two addition files to your tabs folder, namely:

  • tabs.component.css (an optional component CSS file)
  • tabs.component.spec.ts (a unit-testing file)

We’ll keep it simple so we won’t be adding these files.

Next, we’ll display our tabs component inside the AppComponent.

Step 3: Display the TabsComponent inside the AppComponent

In this step, we’ll add the tabs component.

Our DemoTabsManualSelectionComponent selector is demo-tabs-manual-selection, so we will add a custom HTML element, <demo-tabs-manual-selection>, to our AppComponent template file. At the top of app.component.html, add this line of code:

<demo-tabs-manual-selection></demo-tabs-manual-selection>

We also need to add the DemoTabsManualSelectionComponent to a module, and since we only have one module, AppModule, we’ll be adding it there, by updating its declarations array:

declarations: [ AppComponent, HelloComponent, DemoTabsManualSelectionComponent ],

We should also import our DemoTabsManualSelectionComponent to app.module.ts. At the bottom of the list of imports, add the following line:

import { DemoTabsManualSelectionComponent } from './tabs/tabs.component';

Upon save, Stackblitz will notify us of another core Angular package that needs to be installed, namely the @angular/animations package:

Notification, install Angular animations package

After installing the package, you’ll see the following error in the web app panel:

Template parse errors:
'tab' is not a known element:
1. If 'tab' is an Angular component, then verify that it is part of this module.

This problem is documented in this Github discussion.

The solution is easy enough: just import a TabsModule.forRoot() to the list of imports in app.module.ts, like this:

1
2
3
4
5
@NgModule({
  imports:      [ BrowserModule, FormsModule, TabsModule.forRoot() ],
  declarations: [ AppComponent, HelloComponent, DemoTabsManualSelectionComponent ],
  bootstrap:    [ AppComponent ]
})

Doing this will result in the following error:

TabsModule is not defined

To fix the above error, we need to import the TabsModule from ngx-bootstrap into the app.module.ts file, like this:

import { TabsModule } from 'ngx-bootstrap';

In this article, we’ve seen how to implement Bootstrap-styled tabs with the ngx-bootstrap library.

The app at this stage can be found in Github commit for the completed app code.
